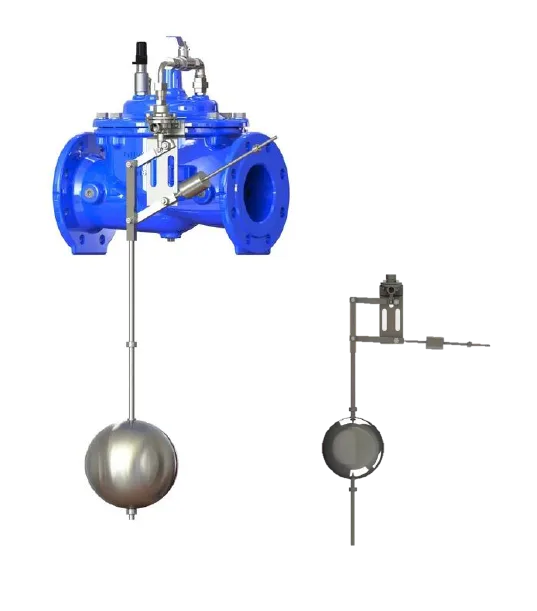

Bi-level Float Control Valve
non-modulating
Bi-level Float Control Valve is hydraulically controlled, diaphragm actuated control valve.

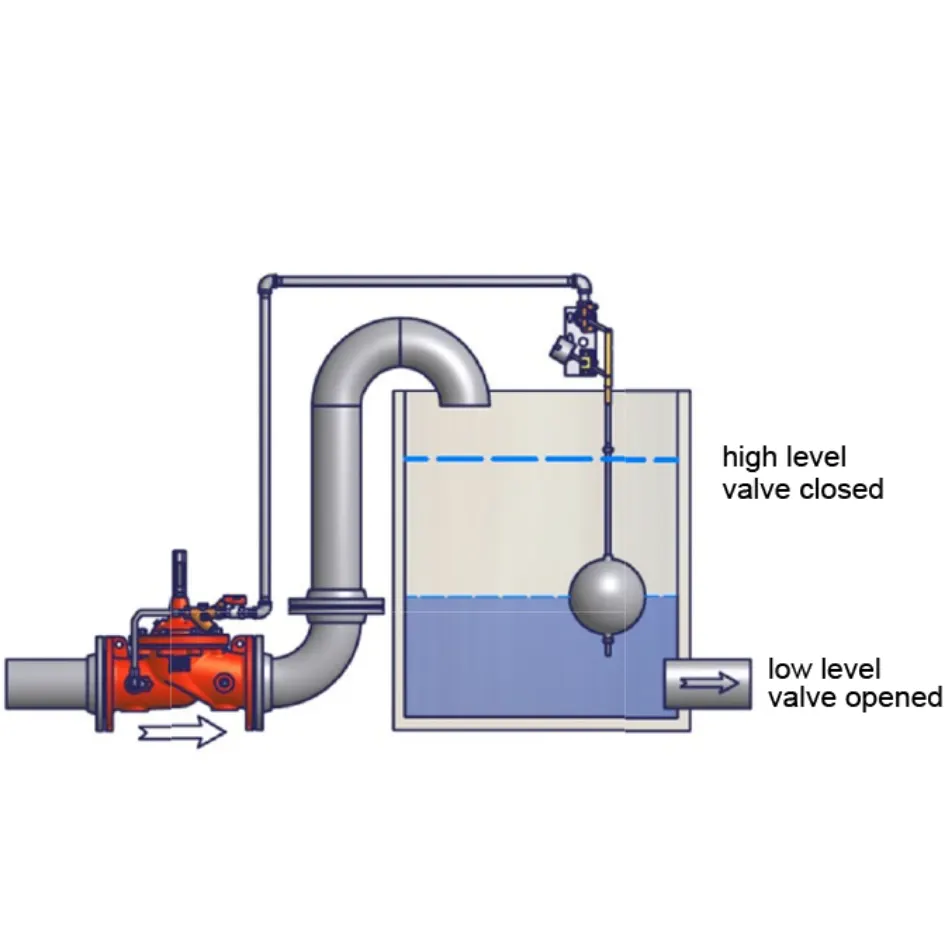

The valve is hydraulically powered to close at preset high lever, and close at preset low level regardless of valve
| No. | Description | Material |
|---|---|---|
| 1 | Bonnet | Stainless Steel AISI 304 |
| 2 | Disc | AISI 304 + EPDM |
| 3 | Body | Stainless Steel AISI 304 |
| 4 | Bolt + Washer | Stainless Steel AISI 304 |
| 5 | O-Ring | Rubber NBR |
| 6 | O-Ring | Rubber NBR |
| 7 | Split pin | Stainless Steel AISI 304 |
| 8 | Split pin | Stainless Steel AISI 304 |
| 9 | Plate | Stainless Steel AISI 304 |
| 10 | Bar 1 | Stainless Steel AISI 304 |
| 11 | Bar 2 | Stainless Steel AISI 304 |
| 12 | Screw | Stainless Steel AISI 304 |
| 13 | Up Rod | Stainless Steel AISI 304 |
| 14 | Stop Collar | Stainless Steel AISI 304 |
| 15 | Float | Stainless Steel AISI 304 |
| 16 | Low Rod | Stainless Steel AISI 304 |
| 17 | Pin Roll & Split Pin | Stainless Steel AISI 304 |
| 18 | Weight | Stainless Steel AISI 304 |
| 19 | Set Screw | Stainless Steel AISI 304 |
| 20 | Nut + Washer | Stainless Steel AISI 304 |
| 21 | Nut | Stainless Steel AISI 304 |
| 22 | Roller | Stainless Steel AISI 304 |
