Single Plate Check Valves
A single plate check valve is designed to ensure reliable, one-way flow control while preventing backflow in piping systems.
Its compact and lightweight design makes it ideal for space-saving installations across HVAC, water, and industrial applications.
Engineered for low pressure drop and minimal water hammer, it delivers efficient and long-lasting performance.
With robust construction and precision sealing, this valve supports consistent operation in demanding conditions.
MATERIAL SPECIFICATIONS
Body and Disk
Cast iron I.S. 210 FG 200
Cast Steel ASTM A-216 Grade WCB
Cast Stainless Steel CF8 & CF8M
Seat and Body ‘O’ rings
Nitrile, EPDM. Viton. Silicon. PTFE
Other materials available on special request
INSTALLATION

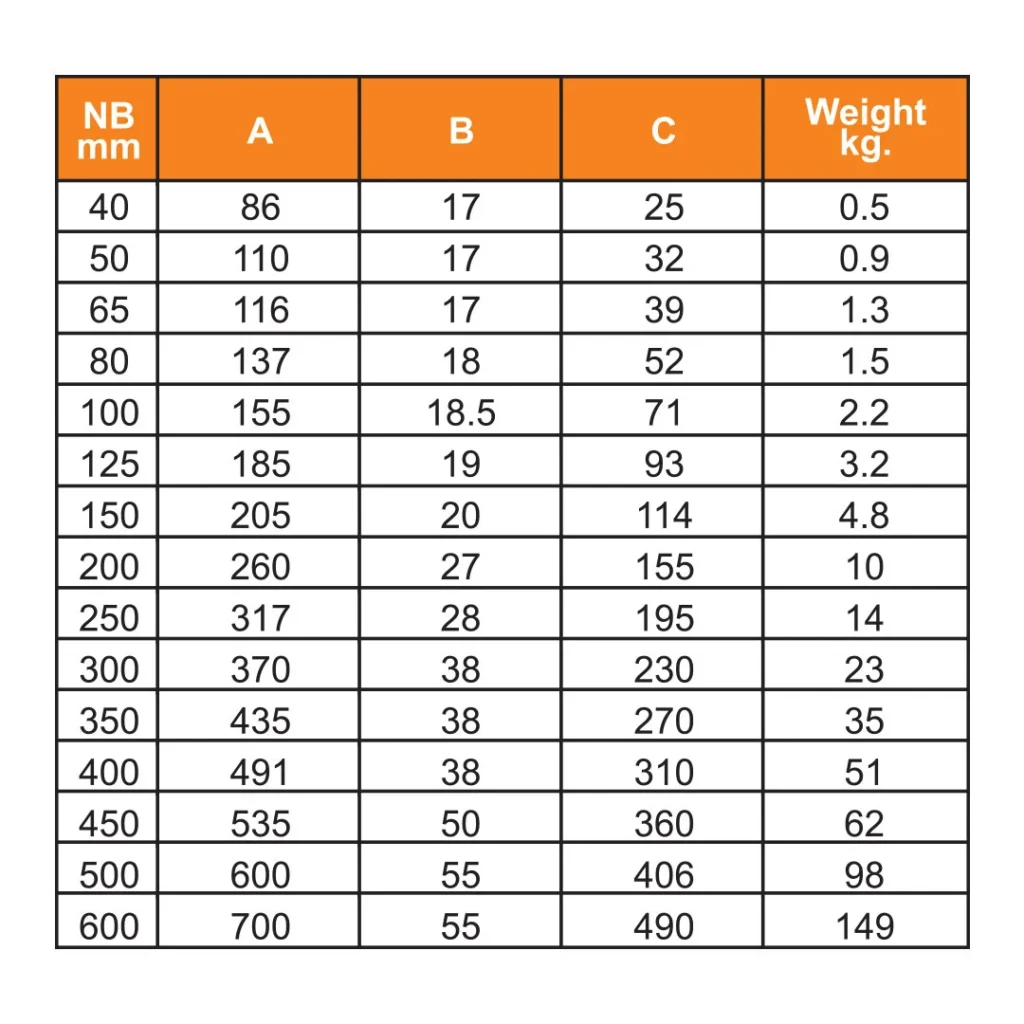

The short face to face dimensions and the low weight guarantee a simple and space saving installation between the bolts of the connecting flanges. Flange sealing is obtained by O-rings.
APPLICATION
Water, Air, Oil, Gas, Steam or any other fluid.
DESIGN FEATURE
The design has distinct advantages over conventional swing check valves.
- Structurally sound
- Hydraulically engineered
- Stronger, lighter and smaller in size
- It weighs 1/8th weight of conventional valve
- Flexible installation: Can be installed in horizontal or in vertical line, without any
- special pipe support.
- Water Hammer and slamming almost eliminated.
- Lower pressure drop, hence lower energy loss.
- The light weight and short face to face dimensions of valve make it easy to install
- between standard gasket and line flanges.
