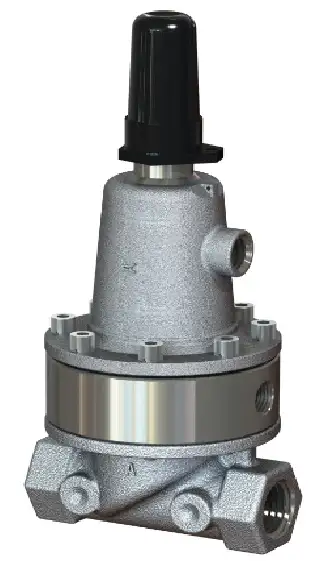

Pressure Differential Valve
The AIP Pressure Differential Valve is designed to maintain a constant pressure difference in water pipeline systems, ensuring stable and efficient flow control. Widely used in HVAC, plumbing, and industrial applications, this valve helps protect pipelines and equipment from pressure fluctuations. Manufactured with high-quality materials, it provides durability, reliable performance, and long service life. AIP Valves is also an IGBC member, supporting sustainable and eco-friendly building and infrastructure solutions.
Pressure Differential Valve
1. Main Valve
2. Needle Valve
3. P800
4. Ball Valve
5. Inlet Pressure Gauge (Optional)
6. Outlet Pressure Gauge (Optional)
7. Strainer
Function
The main valve will open against the system pressure differential whenever exceeds the pilot setting.
| No | Description | Material | Standard |
|---|---|---|---|
| 1 | Cap | Plastic | ABS |
| 2 | Adjusting Screw | Stainless Steel | AISI 304 |
| 3 | Jam Nut | Stainless Steel | AISI 304 |
| 4 | Spring Table | Stainless Steel | AISI 304 |
| 5 | Bonnet | Stainless Steel | AISI 304 |
| 6 | Spring | Spring Steel | SiCrV |
| 7 | Nut | Stainless Steel | A2 |
| 8 | Spring Table | Spring Steel | Mn-Steel + Ni Plated |
| 9 | Fixing Holder | Stainless Steel | AISI 304 |
| 10 | Screw | Stainless Steel | A2 |
| 11 | Diaphragm | Nylon-Reinforced Rubber | EPDM + Nylon |
| 12 | Gasket | Stainless Steel | AISI 304 |
| 13 | O-Ring | Rubber | NBR |
| 14 | Internal Body | Stainless Steel | AISI 304 |
| 15 | O-Ring | Rubber | NBR |
| 16 | O-Ring | Rubber | NBR |
| 17 | Stem | Stainless Steel | AISI 304 |
| 18 | Disc | Stainless Steel + Rubber | AISI 304 + EPDM |
| 19 | Body | Stainless Steel | AISI 304 |
| 20 | O-Ring | Rubber | NBR |
