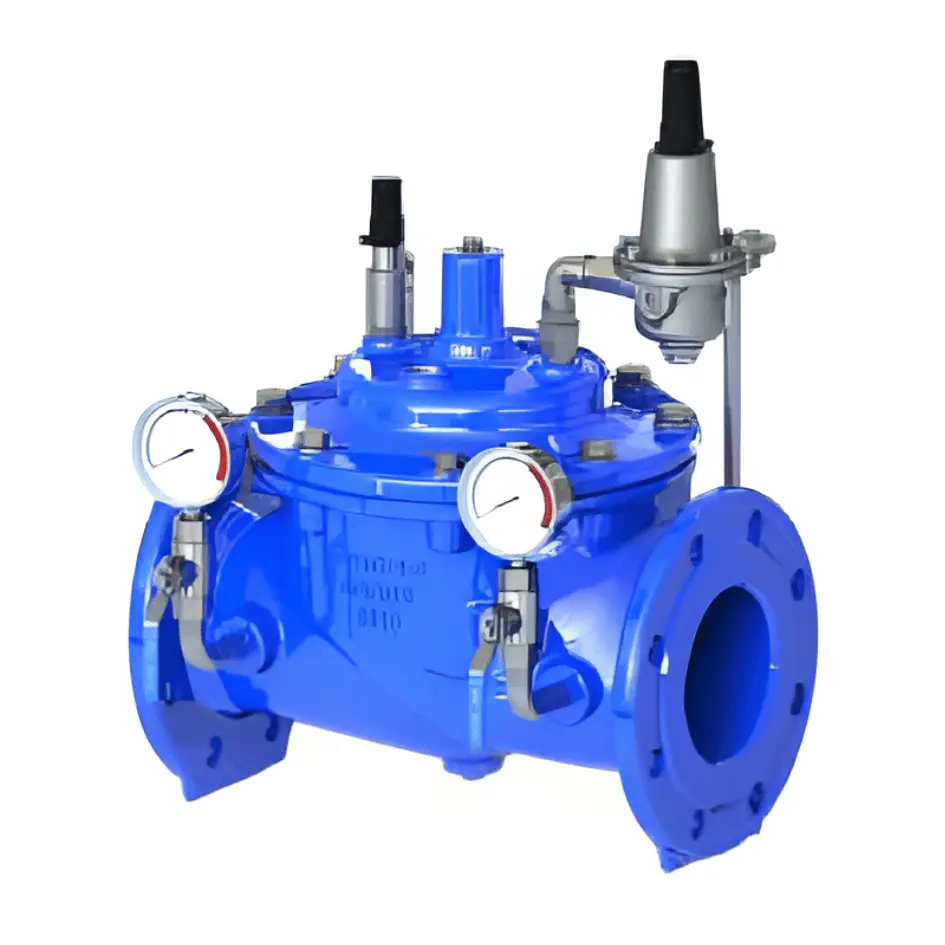

Flow Control Valve
Flow Control Valve
1. Main Valve
2. Needle Valve
3. P400
4. Ball Valve
5. Orifice Kit
6. Strainer
Function
1. Maintains a constant flow, regardless of fluctuations of system pressure.
2. The rate of flow pilot can be adjustable, and senses the pressure differential across an orifice plate
mounted in the valve outlet flange.
3. Whenever the system pressure changes, the flow pilot responds and modulate the main valve to
maintain the desired flow.
| No. | Description | Material | Standard |
|---|---|---|---|
| 1 | Cap | Plastic | ABS |
| 2 | Adjusting Screw | Stainless Steel | AISI 304 |
| 3 | Jam Nut | Stainless Steel | AISI 304 |
| 4 | Spring table | Stainless Steel | AISI 304 |
| 5 | Bonnet | Stainless Steel | AISI 304 |
| 6 | Spring | Spring Steel | SICV |
| 7 | Nut | Stainless Steel | A2 |
| 8 | Spring table | Spring Steel | Mn-Steel + Ni Plated |
| 9 | Fixing Holder | Stainless Steel | AISI 304 |
| 10 | Screw | Stainless Steel | A2 |
| 11 | Diaphragm | Nylon Reinforced Rubber | EPDM + Nylon |
| 12 | O-Ring | Rubber | NBR |
| 13 | Gasket | Stainless Steel | AISI 304 |
| 14 | Stem | Stainless Steel | AISI 304 |
| 15 | Body | Stainless Steel | AISI 304 |
| 16 | Disc | Stainless Steel + Rubber | AISI 304 + EPDM |
| 17 | O-Ring | Rubber | NBR |
| 18 | Plug | Stainless Steel | AISI 304 |
| 19 | O-Ring | Rubber | NBR |
