Wifi Smart Water meter
AIP Valves Rubber Bellows are engineered to absorb vibration, compensate for thermal expansion, and reduce stress within piping systems. Designed for HVAC, water treatment, industrial, and infrastructure applications, these flexible Rubber Bellows help minimize noise, water hammer effects, pipe misalignment, and operational strain while improving overall system reliability and service life.

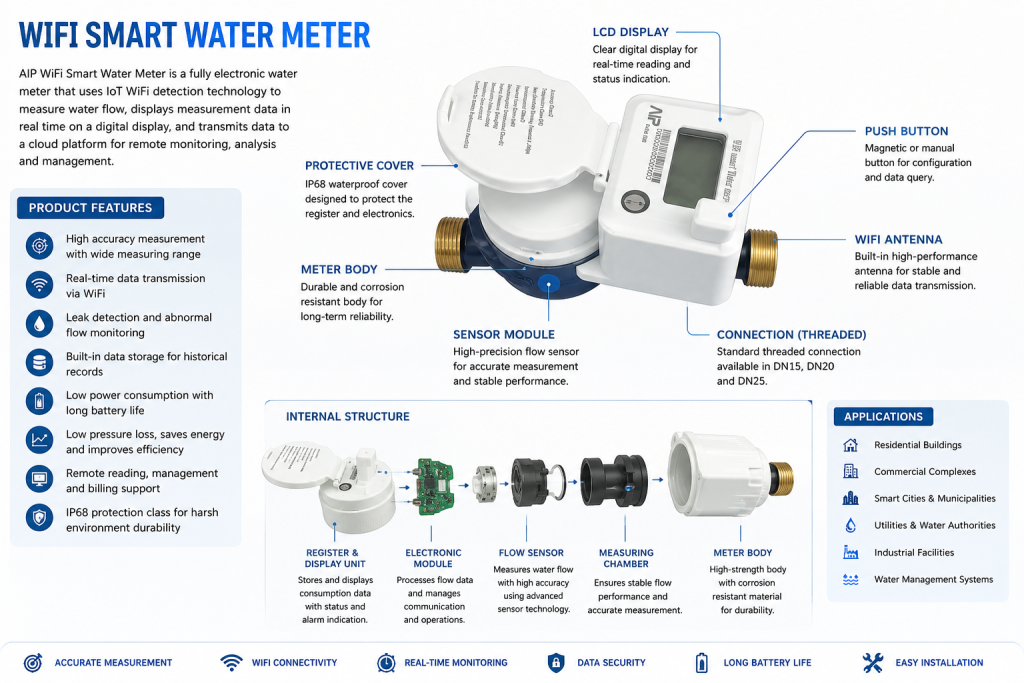

WIFI SMART WATER METER
- Designed for accurate water consumption measurement and real-time monitoring.
- WiFi-enabled communication allows remote meter reading without manual data collection.
- Digital display provides clear and reliable consumption data.
- Supports leak detection and usage monitoring for improved water management.
- Built-in data storage helps track historical consumption and operational records.
- Suitable for residential buildings, commercial complexes, utility networks, and smart water management applications.
AIP WiFi Smart Water Meter Technical Specifications
DIMENSIONAL SPECIFICATIONS
| Size (DN) | Length (mm) | Width (mm) | Height (mm) | Connection Thread |
|---|---|---|---|---|
| 15 | 165 | 90 | 150 | G 3/4 B |
| 20 | 195 | 90 | 152 | G1 B |
| 25 | 225 | 104 | 175 | G1 1/4 B |
| 32 | 230 | 104 | 175 | G1 1/2 B |
| 40 | 245 | 125 | 210 | G2 B |
| 50 | 280 | 125 | 230 | Flanged End |
Technical Parameters
| Project | Units | DN15 | DN20 | DN25 |
|---|---|---|---|---|
| Nominal Caliber | mm | 15 | 20 | 25 |
| Overload Flow (Q4) | m³/h | 3.125 | 5 | 7.875 |
| Common Flow (Q3) | m³/h | 2.5 | 4 | 6.3 |
| Transitional Flow (Q2) | m³/h | 0.05 | 0.08 | 0.13 |
| Minimum Flow (Q1) | m³/h | 0.025 | 0.04 | 0.063 |
| Range Ratio (Q3/Q1) | – | R80 / R100 / R125 / R160 | R80 / R100 / R125 / R160 | R80 / R100 / R125 / R160 |
| Maximum Reading | m³ | 99999 | 99999 | 99999 |
| Minimum Reading | m³ | 0.0005 | 0.0005 | 0.0005 |
Why Choose AIP WiFi Smart Water Meter?
✔ High-accuracy water consumption measurement with digital display.
✔ WiFi-enabled communication for remote meter reading and monitoring.
✔ Real-time data transmission for efficient water usage management.
✔ Supports leak detection and abnormal consumption monitoring.
✔ Built-in memory for storing historical usage and operational records.
✔ Low pressure loss design for improved hydraulic performance.
✔ Reduces manual reading errors and operational costs.
✔ Compatible with centralized billing and smart water management systems.
✔ Suitable for residential, commercial, utility, and infrastructure projects.
✔ Durable construction designed for long-term reliable operation.
