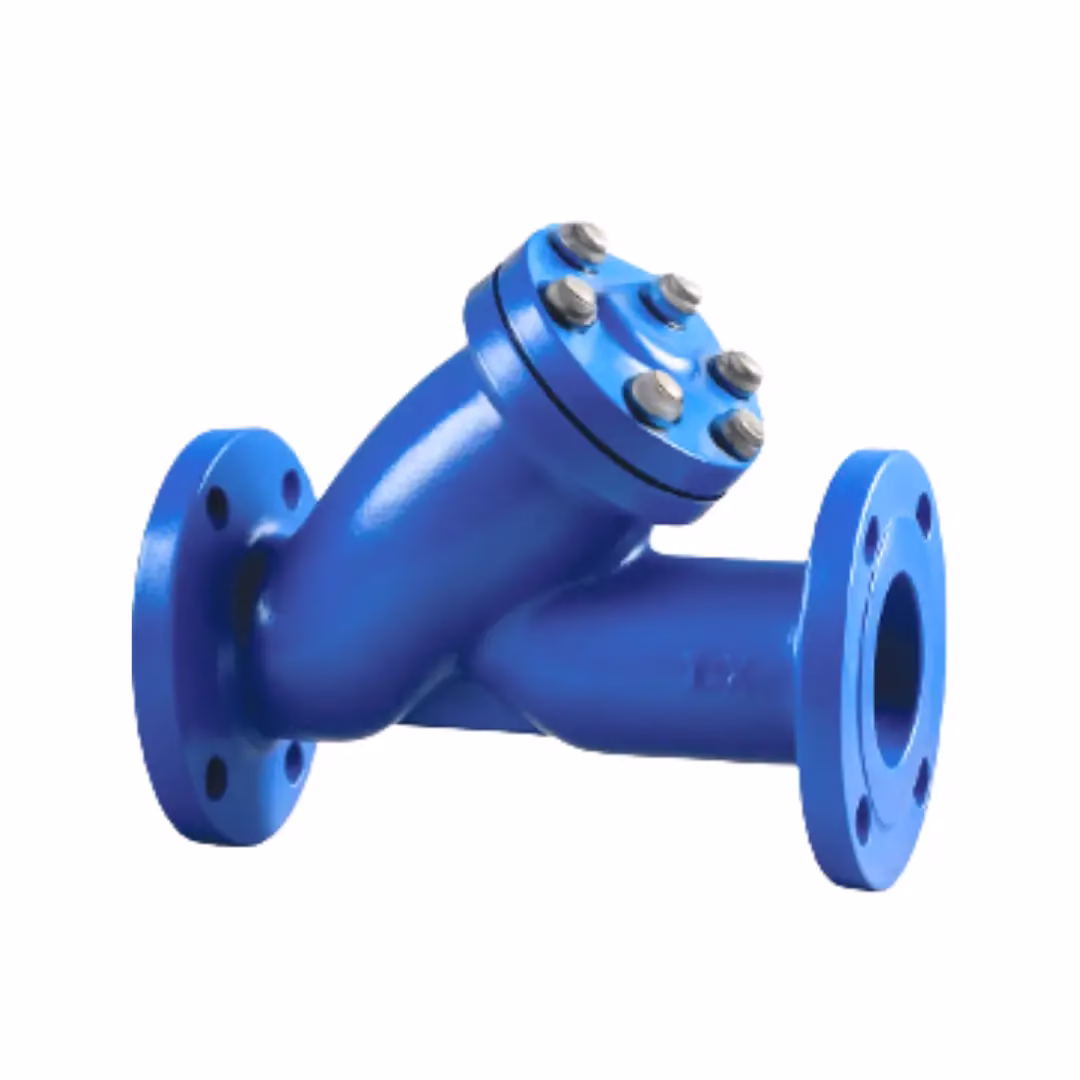

STRAINER
Applications
The AIP Strainer is designed for general industrial applications including:
Water pipelines
Oil pipelines
Gas pipelines
Steam lines
Industrial process equipment
It is widely used to protect downstream equipment by removing unwanted solid particles from the flowing medium.
Working Temperature
230°C working temperature for steam applications
65°C working temperature for water, oil, and gas
(Temperature and pressure ratings may vary depending on material selection.)
Features
Clears unwanted particles from the pipeline
Protects valves, pressure relief valves, pumps, and other equipment
Recommended to install at the inlet side during installation
Reduces risk of equipment damage
Ensures smooth and uninterrupted flow
Strainer Design & Construction Details

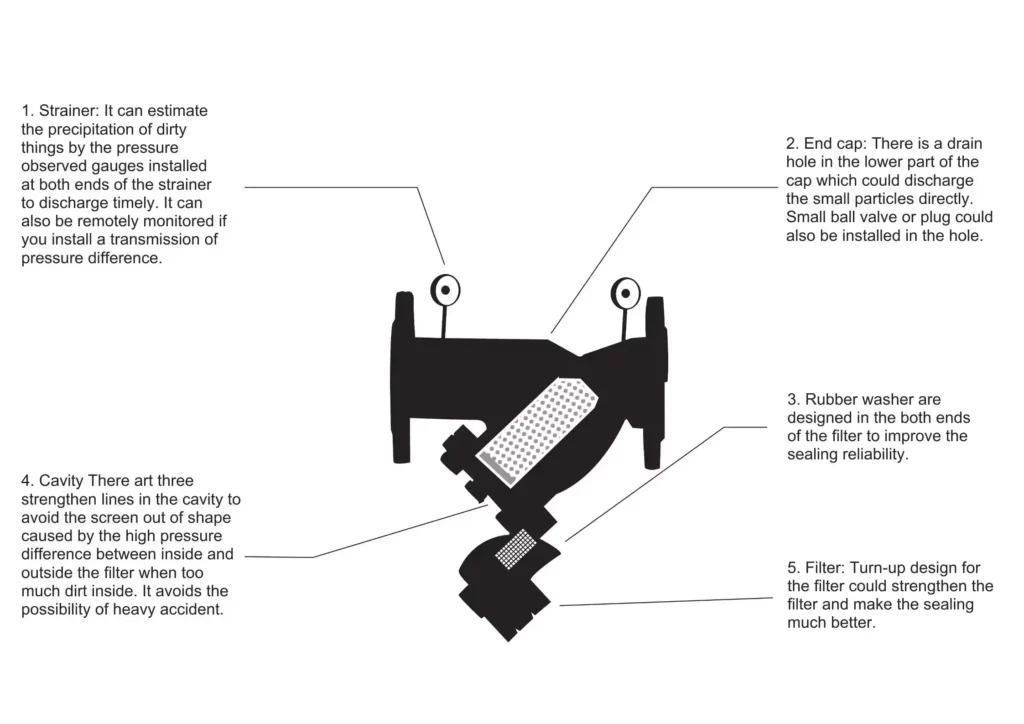

Strainer Function
It can estimate the presence of dirt in the pipeline by measuring pressure difference before and after filtration. It is easy to monitor when a transmitter or pressure gauge is installed.End Cap / Drain Plug
There is a drain hole in the lower part of the cap which allows small particles to be discharged. A small ball valve or plug can also be installed.Sealing System
Rubber washer is designed to improve sealing reliability and prevent leakage.Cavity Design
The cavity includes three strengthening ribs that reduce deformation caused by high pressure differences inside and outside the filter, improving durability.Filter Element
Turn-up design strengthens the filter mesh and improves sealing performance.
